LED stands for Light Emitting Diode. It's a semiconductor device that emits light when an electric current passes through it. Here's an elaborate breakdown of its components and how it works:
1.2 What is so good about LED as a Whole?
Efficiency: LEDs are highly efficient light sources compared to traditional incandescent or fluorescent bulbs. They convert a higher percentage of the electricity they consume into light rather than heat. This efficiency makes them suitable for a wide range of applications, from lighting homes and offices to backlighting displays and indicator lights.
Longevity: LEDs have a much longer lifespan compared to traditional light sources. They can last tens of thousands of hours, significantly reducing the need for frequent replacements and maintenance.
Dynamic Content: LED displays can showcase dynamic content such as videos, animations, and scrolling text, allowing advertisers to create engaging and eye-catching advertisements. Dynamic content has been shown to be more effective in capturing viewers' attention and conveying messages compared to static images or text.
Customization and Flexibility: LED displays can be easily customized to suit specific promotional campaigns or target audiences. Advertisers can quickly update content, change messaging, and adapt visuals to reflect current promotions, sales, or events. This flexibility enables businesses to stay relevant and responsive to market trends and consumer preferences.
Impactful Visuals: LED technology offers vibrant colors, high contrast ratios, and sharp image quality, ensuring that advertisement content is visually appealing and impactful. Eye-catching visuals are more likely to grab viewers' attention and leave a lasting impression, increasing brand recall and driving sales.
Cost-Effectiveness: While the initial investment in LED displays may be higher compared to traditional advertising methods, they offer long-term cost-effectiveness. LED displays have lower maintenance costs, consume less energy, and have longer lifespans, reducing overall operational expenses over time. Additionally, the ability to update content digitally eliminates the need for printing and distributing physical materials, saving on recurring costs.
Targeted Advertising: LED displays can be strategically placed in high-traffic areas or locations frequented by the target audience, ensuring that advertisements reach the right people at the right time. Furthermore, LED displays equipped with advanced technology such as facial recognition or geolocation tracking can deliver personalized content tailored to individual viewers, maximizing relevance and effectiveness.
Environmental Friendliness: LED technology is environmentally friendly compared to traditional lighting solutions. LEDs consume less energy, produce less heat, and contain no hazardous materials such as mercury. By choosing LED advertisement, businesses demonstrate their commitment to sustainability, which can resonate positively with environmentally conscious consumers and enhance brand reputation.
8. Versatility: LEDs come in various shapes, sizes, and colours, making them highly versatile for different applications. They can be found in everything from small indicator lights on electronic devices to large outdoor display screens and automotive headlights.
1.3 Types of LED Panels:
TYPES OF LED
DIP(Dual Inline-pin Package) LED panels consist of individual LEDs (light-emitting diodes) mounted onto a circuit board. These LEDs are typically encapsulated in a plastic housing with two pins for electrical connection. Each LED is visible as a discrete point of light. (Usually is between P25-P10)
COB(Chip-On-Board) LED panels, on the other hand, use Chip-on-Board technology where multiple LED chips are directly mounted onto a single substrate. These LED chips are bonded directly to the substrate, allowing for a higher packing density of LEDs compared to DIP technology. COB LEDs often appear as a single, solid light source rather than individual points of light.(Usually is between P1.86-P0.07)
SMD (Surface Mount Device): SMD technology involves mounting LED chips onto the surface of a circuit board using soldering. These LED chips are smaller and more discrete compared to GOB, and they are mounted directly onto the board without an additional glass layer.(Usually is between P8-P4)
GOB (Glass on Board): In GOB technology, the LED chips are mounted directly onto a glass substrate, and then the substrate is mounted onto the circuit board. This creates a solid, seamless surface with the LEDs protected by the glass layer.(Usually is between P3-P2)
Factors to Compare
(Chip On Board)COB LED Display
(Surface Mount Device)SMD LED Display
(Glass On Board)GOB LED Display
Failure Rating
Less Susceptible to Failure
More Prone to Failure
Less Susceptible to Failure
Energy Efficiency
More Energy Efficient
Less Energy Efficient
Less Energy Efficient
Current Capacity
Bigger
Smaller
Smaller
Ingress Protection Rating
1P54
IP20 to IP30
IP20 to IP30
Protection Characteristics
Less Prone to Damage from External Factors
Susceptible to Damage from Heat, Collision, & Humidity
Less Prone to Damage from External Factors
Price
Expensive
Less Expensive
Expensive
Cost-Effectiveness
More Cost-effective
Less Cost-effective
More Cost-effective
Variety of Colours
Limited
Wide Variety
Wide Variety
Limitations of Usage
Can Be Used For Smaller Components
Limited to Components Larger than 0.5 mm
Can Be Used For Most Components Sizes
Number of Diodes
Up to 9 or More Diodes
Up to 3 Diodes on 1 Chip
Up to 3 Diodes on 1 Chip
Connections
2 Connection, 1 Circuit
2,4, or 6 Connections
2,4, or 6 Connections
Appearance
Looks like a Panel
Collection of Lights
Collection of Lights
Luminosity
At least 60 lumens per watt
50 to 100 lumens per Watt
50 to 100 lumens per Watt
OUTDOOR LED PANELS
INDOOR LED PANELS
Features
Outdoor LED displays are designed for use in outdoor environments exposed to sunlight, rain, wind, and varying temperatures.
They are commonly installed in outdoor advertising locations, sports stadiums, transportation hubs, city centers, and outdoor events venues.
These displays are built to withstand harsh weather conditions and provide clear visibility in bright outdoor lighting.
Indoor LED displays are designed for use in indoor environments such as shopping malls, airports, retail stores, conference centers, and indoor stadiums.
They are typically installed in areas with controlled lighting conditions and minimal exposure to harsh weather elements.
These displays are often used for advertising, information dissemination, wayfinding, entertainment, and branding purposes.
Characteristics
Outdoor LED displays typically have higher brightness levels and anti-glare properties to ensure visibility even in direct sunlight.
They are designed to be weatherproof, with rugged construction and sealed cabinets to protect against moisture, dust, and temperature fluctuations.
Outdoor LED displays may have wider viewing angles and larger pixel pitches to accommodate longer viewing distances and provide optimal visibility from various angles.
Indoor LED displays usually have higher resolution and pixel density compared to outdoor displays, as viewers are in closer proximity to the screen.
They may have finer pixel pitches, resulting in clearer and more detailed images and videos.
Indoor LED displays are optimized for indoor viewing distances and offer excellent brightness and color reproduction suitable for indoor lighting conditions.
Design Considerations
Outdoor LED displays are constructed with durable materials such as aluminum or steel frames and tempered glass panels to withstand outdoor elements and vandalism.
They often feature built-in cooling systems and advanced thermal management to prevent overheating and ensure reliable operation in extreme temperatures.
Indoor LED displays are often sleeker and lighter in design compared to outdoor displays.
They may feature thinner cabinets and frames to blend seamlessly into indoor architectural spaces and provide a modern aesthetic.
These displays can be wall-mounted, hung from ceilings, or integrated into larger structures such as stage backdrops or video walls.
Content and
Applications:
Outdoor LED displays are used for large-scale advertising, public information displays, event signage, and live video broadcasts.
They can display dynamic content such as advertisements, announcements, live event feeds, sports scores, and traffic information.
Outdoor LED displays are effective for reaching a broad audience in high-traffic outdoor locations and creating memorable visual experiences for spectators and passersby.
Indoor LED displays can showcase a wide range of content, including advertisements, promotional videos, live event feeds, informational graphics, and interactive content.
They are commonly used in retail environments to highlight products, convey brand messages, and engage customers.
Indoor LED displays are also popular in corporate settings for presentations, conferences, and digital signage applications.
Comparison
Fixed Outdoor LED Display Panel Frame:
Advantages:
Stability and Durability: Fixed outdoor LED display panel frames are securely anchored to the ground or a structure, providing stability and resistance to wind, vibration, and other environmental factors. This ensures long-term durability and reliable operation.
Permanent Installation: Once installed, fixed outdoor LED display panel frames become a permanent fixture, providing continuous visibility and exposure to passersby and audiences. They are ideal for locations requiring constant advertising or information dissemination.
High Visibility: Fixed outdoor LED display panel frames are strategically positioned in high-traffic areas, such as roadsides, shopping centers, stadiums, and public squares, maximizing visibility and exposure to a large audience.
Customization Options: Fixed outdoor LED display panel frames can be customized in terms of size, shape, resolution, and configuration to suit specific requirements and architectural constraints of the installation site.
Relatively Lower Maintenance: Compared to mobile frames, fixed outdoor LED display panel frames typically require less maintenance since they are not subject to frequent movement or relocation.
Disadvantages:
Limited Flexibility: Fixed outdoor LED display panel frames lack mobility and flexibility, making it challenging to adjust their position or orientation once installed. This can be a limitation in situations where the display needs to be repositioned for optimal visibility or targeted audience engagement.
Higher Installation Costs: The installation of fixed outdoor LED display panel frames often involves more extensive groundwork, foundation preparation, and structural support, leading to higher upfront costs compared to mobile frames.
Vulnerability to Vandalism: Fixed outdoor LED display panel frames may be susceptible to vandalism, graffiti, or unauthorized tampering, especially in public areas with limited supervision or security measures.
Regulatory Considerations: Installation of fixed outdoor LED display panel frames may require permits, approvals, and compliance with local regulations, zoning ordinances, and signage guidelines. Obtaining regulatory approvals can add complexity and time to the installation process.
Rental Outdoor LED Display Panel Frame:
Advantages:
Flexibility and Portability: Mobile outdoor LED display panel frames are designed for easy transportation, setup, and relocation to different locations or events. They offer flexibility in positioning and can be moved to target specific audiences or maximize exposure at temporary venues.
Event Marketing: Mobile outdoor LED display panel frames are ideal for event marketing, promotions, and temporary installations such as concerts, festivals, trade shows, and sporting events. They provide dynamic branding opportunities and engage audiences in dynamic environments.
Quick Deployment: Mobile outdoor LED display panel frames can be set up and operational in a relatively short time, allowing for rapid deployment and immediate visibility of advertising or informational content.
Versatility in Content: Mobile outdoor LED display panel frames support a wide range of content formats, including static images, videos, animations, and interactive presentations. They can be synchronized with live events, social media feeds, or real-time data for dynamic content delivery.
Disadvantages:
Limited Stability: Mobile outdoor LED display panel frames may have reduced stability and resistance to environmental factors compared to fixed frames. They may be more susceptible to wind, vibration, and movement, especially in outdoor settings with variable weather conditions.
Higher Maintenance Requirements: Due to frequent transportation and setup, mobile outdoor LED display panel frames may require more frequent maintenance and servicing to ensure optimal performance and reliability. Components such as wheels, hinges, and electrical connections may be subject to wear and tear.
Logistical Challenges: Transporting and storing mobile outdoor LED display panel frames can pose logistical challenges, especially for large or heavy units. Specialized equipment, vehicles, or logistical support may be required for transportation and setup at different locations.
Limited Visibility Duration: Mobile outdoor LED display panel frames are typically used for temporary or short-term campaigns, limiting the duration of visibility and exposure compared to fixed installations. They may not provide continuous visibility to the target audience.
Fixed Indoor LED Display Panel Frame:
Advantages:
Stable Installation: Fixed indoor LED display panel frames are securely mounted to walls, ceilings, or structures within indoor environments, providing stability and resistance to movement or vibration. This ensures reliable operation and minimizes the risk of damage or displacement.
Permanent Visibility: Once installed, fixed indoor LED display panel frames become a permanent fixture in the indoor space, providing continuous visibility and exposure to occupants, visitors, or customers. They are suitable for locations requiring constant advertising, branding, or information dissemination.
High Visibility: Fixed indoor LED display panel frames are strategically positioned in high-traffic areas such as lobbies, retail stores, airports, and conference centers, maximizing visibility and engagement with the target audience.
Seamless Integration: Fixed indoor LED display panel frames can be seamlessly integrated into architectural elements, interior design, or signage systems, enhancing the aesthetic appeal and functionality of indoor spaces. They can be customized to complement the décor and branding of the environment.
Relatively Lower Maintenance: Compared to mobile frames, fixed indoor LED display panel frames typically require less maintenance since they are not subject to frequent movement or relocation. They remain in place and do not require adjustment once installed.
Disadvantages:
Limited Flexibility: Fixed indoor LED display panel frames lack mobility and flexibility, making it challenging to adjust their position or orientation after installation. This can be a limitation in dynamic indoor environments where the display needs to be repositioned for optimal visibility or audience engagement.
Higher Installation Costs: The installation of fixed indoor LED display panel frames may involve more extensive preparation, mounting hardware, and structural modifications, leading to higher upfront costs compared to mobile frames.
Space Constraints: Fixed indoor LED display panel frames occupy permanent space within indoor environments, potentially limiting flexibility in space utilization or room layout. They may compete with other elements such as furniture, fixtures, or architectural features for space.
Regulatory Considerations: Installation of fixed indoor LED display panel frames may be subject to building codes, fire regulations, and safety standards governing electrical installations and signage within indoor spaces. Compliance with regulatory requirements may add complexity and time to the installation process.
Rental Indoor LED Display Panel Frame:
Advantages:
Flexibility and Portability: Mobile indoor LED display panel frames are designed for easy transportation, setup, and relocation within indoor environments. They offer flexibility in positioning and can be moved to different areas or rooms to target specific audiences or maximize visibility.
Event Versatility: Mobile indoor LED display panel frames are ideal for temporary events, presentations, exhibitions, trade shows, and conferences. They provide dynamic branding opportunities and engage audiences in diverse indoor settings.
Quick Deployment: Mobile indoor LED display panel frames can be set up and operational in a relatively short time, allowing for rapid deployment and immediate visibility of advertising or informational content.
Space Optimization: Mobile indoor LED display panel frames can be positioned strategically to optimize space utilization within indoor environments. They can be moved aside or stored when not in use, allowing for flexible room layouts and multifunctional spaces.
Disadvantages:
Limited Stability: Mobile indoor LED display panel frames may have reduced stability compared to fixed frames, especially if they are lightweight or designed for portability. They may be susceptible to movement or tipping if not properly anchored or secured.
Higher Maintenance Requirements: Due to frequent transportation and setup, mobile indoor LED display panel frames may require more maintenance and servicing to ensure optimal performance and reliability. Components such as wheels, hinges, and electrical connections may be subject to wear and tear.
Logistical Challenges: Transporting and storing mobile indoor LED display panel frames can pose logistical challenges, especially for large or heavy units. Specialized equipment, dollies, or logistical support may be required for transportation and setup within indoor spaces.
Limited Visibility Duration: Mobile indoor LED display panel frames are typically used for temporary or short-term campaigns, limiting the duration of visibility and exposure compared to fixed installations. They may not provide continuous visibility to the target audience within indoor environments.

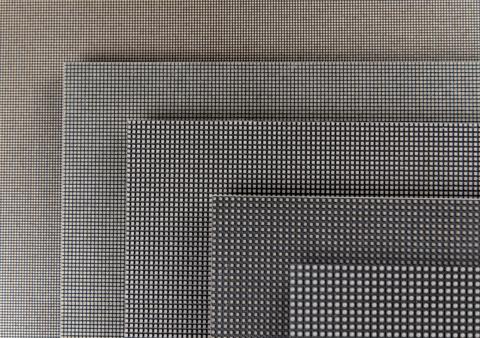

PITCH(P)
Pitch Distance : Pitch distance refers to the center-to-center spacing between adjacent pixels on the LED screen. It determines the level of detail that can be displayed and the sharpness of the images or videos.
Viewing Distance: The pitch of an LED screen also influences the optimal viewing distance. Screens with smaller pitches are suitable for closer viewing distances, such as indoor applications or situations where the audience is near the screen. In contrast, screens with larger pitches are more suitable for outdoor or large-scale applications where viewers are farther away
Pixel Density: Pitch inversely correlates with pixel density. A smaller pitch corresponds to higher pixel density, meaning more pixels are packed into a given area. Higher pixel density results in smoother images, reduced pixelation, and better color accuracy, enhancing the overall visual experience.
Resolution: The pitch directly affects the resolution of the LED screen. A smaller pitch means more pixels per unit area, resulting in higher resolution and sharper images. Higher resolution is essential for displaying fine details and text, making the content more legible and visually appealing.
Moire Effect: When the pitch of the LED screen aligns with the resolution of the displayed content, it can cause interference patterns known as the moire effect. This effect results in unwanted visual artifacts, such as shimmering or jagged edges, particularly in fine patterns or textures. Proper adjustment of the pitch relative to the content resolution can mitigate this issue.
Cost and Complexity: Smaller pitch LED screens typically come at a higher cost due to the higher density of LEDs and more intricate manufacturing processes required to achieve finer pixel pitches. Additionally, smaller pitch screens may require more complex control systems and higher processing power to drive the increased number of pixels effectively.
BRIGHTNESS
Brightness plays a critical role in determining the effectiveness of LED displays in conveying messages, attracting attention, and engaging viewers. Here's how brightness impacts the effectiveness of LED displays:
Visibility and Readability: Higher brightness levels enhance the visibility and readability of content displayed on LED panels, especially in environments with high ambient light or direct sunlight. Increased brightness ensures that the content remains clearly visible from a distance and at various viewing angles, allowing for better communication of information to the audience.
Attention-Grabbing: Brighter LED displays have greater visual impact and are more effective at capturing the attention of passersby or spectators. The increased luminance draws the viewer's gaze and creates a focal point, making the content stand out amidst competing visual stimuli in crowded environments such as shopping malls, transportation hubs, and outdoor events
Outdoor Visibility: In outdoor applications, such as digital billboards, roadside signage, and stadium screens, high brightness levels are essential for overcoming the challenges posed by daylight and ambient light conditions. Bright LED displays ensure that content remains visible and legible even in bright sunlight, maximizing visibility and reach.
Content Legibility: Brightness directly affects the legibility of text, graphics, and images displayed on LED panels. Insufficient brightness can result in washed-out colors, reduced contrast, and blurry text, making the content difficult to read and comprehend. Optimal brightness levels ensure crisp, clear, and vibrant visuals, enhancing the effectiveness of the communication.
Brand Visibility: LED displays serve as powerful branding tools for businesses, advertisers, and event organizers. Higher brightness levels allow brands to showcase their logos, slogans, and promotional messages with greater impact and visibility, reinforcing brand identity and recognition among the target audience.
Engagement and Recall: Bright, dynamic content displayed on LED panels captivates viewers' attention and encourages engagement with the displayed message or advertisement. Studies have shown that bright and vivid visuals are more memorable and have a higher recall rate, leading to increased brand awareness and message retention among viewers.
Dynamic Range: Brightness affects the dynamic range of LED displays, which refers to the range of luminance levels from the darkest to the brightest parts of the displayed content. Higher brightness levels expand the dynamic range, allowing for greater contrast between light and dark elements, which enhances visual depth, detail, and realism.
Energy Efficiency: While higher brightness levels offer advantages in terms of visibility and impact, they also consume more energy. Therefore, it's essential to strike a balance between brightness and energy efficiency to optimize the performance and operating costs of LED displays. Utilizing brightness control features and adjusting brightness levels based on ambient light conditions can help achieve this balance.
Led Components
FIXED
RENTAL
This image provides a detailed breakdown of the internal components of a Fixed LED display cabinet. Let's elaborate on each component:
Iron: Fixed Indoors LED display Screen usually use an iron frame to hold the display as it is durable while being indoors means less likely any contact with humidity, by extension lowering the chances of rust
Receiver Card: The receiver card is a hardware component responsible for receiving and processing video signals from external sources, converting them into data that the LED display panel can interpret and display.
Positioning Pins: These are protruding pins used to align and secure the LED display panel during installation, ensuring proper positioning and alignment with adjacent panels
Mounting Holes: These are holes in the frame of the LED display panel used for mounting and securing the panel to a supporting structure or mounting bracket
Energy Saving Power Supply: This is a power supply unit specifically designed to provide electrical power to the LED display panel while optimizing energy efficiency and minimizing power consumption.
Gilded Power Connectors: These are gold-plated connectors used to establish electrical connections between the power supply unit and the LED display panel, ensuring reliable power transmission and minimizing signal loss.
Gilded Data Connectors: Similar to the power connectors, these are gold-plated connectors used to establish data connections between the receiver card and the LED display panel, facilitating the transmission of video signals.
Energy Saving LED Modules: These are LED modules integrated into the display panel that are designed to be energy-efficient, consuming less power while still delivering high-quality illumination and brightness.DFGST
Each of these components plays a crucial role in the operation, installation, and maintenance of the LED display cabinet, contributing to its functionality, durability, and performance.
This image provides a detailed breakdown of the internal components of a Rental LED display cabinet. Let's elaborate on each component:
Locating Pin: A pin used for aligning and securing multiple cabinets together to form a larger LED display wall. It ensures precise alignment and seamless integration between adjacent cabinets.
Corner Protector: A protective element designed to safeguard the corners of the LED display cabinet from impact or damage during transportation, installation, and operation.
Cabinet Side Lock: A locking mechanism used to secure the side panels of the LED display cabinet in place, ensuring structural integrity and stability.
Side Handle: A handle attached to the side of the cabinet for easy lifting, carrying, and maneuvering during installation, maintenance, and servicing activities.
Power Supply: The power supply unit responsible for converting AC (alternating current) input power to DC (direct current) output power required to operate the LED display modules and associated electronics.
Receiving Card: A circuit board or module installed within the LED display cabinet to receive and process incoming video signals, control commands, and data from external sources such as video processors or media players.
Locating Hole: A hole or slot used for aligning and securing the cabinet during installation and assembly processes. It helps ensure precise positioning and alignment between multiple cabinets.
Top Handle: A handle located on the top of the cabinet for easy lifting, handling, and positioning during installation, maintenance, and servicing tasks.
Power Box: A compartment or enclosure housing the power supply unit, wiring, and other electrical components necessary for powering and operating the LED display cabinet.
LED Module Cable: Cables or connectors used to interconnect the LED display modules within the cabinet, transmitting power, data, and control signals between individual modules and the receiving card.
PowerCON: A type of locking power connector commonly used in professional lighting and audio-visual equipment to provide secure and reliable power connections.
Power Cable: The cable used to connect the LED display cabinet to an external power source, delivering electrical power from the power supply unit to the cabinet's internal components.
EtherCON: A type of ruggedized Ethernet connector commonly used in professional audio, video, and lighting applications to provide robust and secure network connections.
Power Box Lock: A locking mechanism used to secure the power supply unit and other electrical components within the power box enclosure, preventing unauthorized access and tampering.
Cabinet Splicing Lock: A locking mechanism used to secure and align multiple LED display cabinets together, ensuring seamless integration and structural stability when forming a larger LED display wall.
Each of these components plays a crucial role in the operation, installation, and maintenance of the LED display cabinet, contributing to its functionality, durability, and performance.
LED Display Production Process:
This image illustrates the production processes involved in creating an LED display, from individual LED components to the final assembled whole screen. Here's a breakdown of each stage:
LED:
The process begins with individual LED components such as DID, SMD, COB, and GOB soldered onto a module board to form a cohesive unit.
Module:
These LED units or panels now contain a grid of LEDs arranged in rows and columns, with each LED representing a single pixel on the display. The modules are designed to be easily interconnected to form larger display surfaces.
Cabinet:
The LED modules are then mounted onto a cabinet structure. The cabinet serves as the framework that holds and supports the LED modules in place. It provides structural integrity and protection for the LED display, as well as housing components such as the power supply and control system.
Whole Screen:
Finally, multiple cabinets are assembled together to create the complete LED display screen. The cabinets are seamlessly aligned and interconnected to form a unified display surface. The whole screen is capable of displaying images, videos, or other content with high resolution and brightness.
Control System Connection:
Camera (CVBS): CVBS stands for Composite Video Baseband Signal. This input is used to connect a camera to the LED display system for displaying live video feeds or recorded footage.
DVD (Y/C) and HD DVD (Y/Pb/Pr): These inputs are used to connect DVD players or other video sources to the LED display system. Y/C refers to S-video, which separates the luminance (Y) and chrominance (C) signals, while Y/Pb/Pr refers to component video, which separates the video signal into luminance (Y), blue (Pb), and red (Pr) components.
Laptop PC (VGA) and PC (DVI-I): These inputs allow connection to computers or other devices with VGA or DVI-I video outputs. VGA (Video Graphics Array) and DVI-I (Digital Visual Interface-Integrated) are common video standards used for connecting computers to displays.
LED-Video Processor: The LED-video processor is a device used to process and control the video signals before they are displayed on the LED screen. It may perform functions such as scaling, color correction, and video switching.
FiberLink Transmitter and Receiver: FiberLink is a transmission system that uses fiber optic cables to transmit video signals over long distances with minimal signal degradation. The transmitter converts the video signal into optical signals, which are then transmitted through fiber optic cables to the receiver, where they are converted back into electrical signals.
Ethernet Transmitter: The Ethernet transmitter sends control signals and data over an Ethernet network to the LED display system. It allows for remote control and monitoring of the LED display, as well as the transmission of content from networked devices.
RS-232: RS-232 is a standard serial communication protocol used for connecting devices such as computers, controllers, and peripherals. It is commonly used for sending control commands and data to the LED display system.
Connection
1. LAN (Local Area Network):
2. WAN(Wide Area Network)/WIFI:
Importance:
Remote Control and Monitoring: LAN connections enable remote control and monitoring of LED panels from a centralized location. This allows operators to adjust settings, schedule content playback, and diagnose issues without physically accessing the LED panels.
Content Distribution: LAN connections facilitate the distribution of content to LED panels from networked devices such as media servers, computers, or content management systems. This ensures seamless and efficient content management across multiple displays.
Software Updates: LAN connections allow for remote software updates and firmware upgrades for LED panels, ensuring they stay up-to-date with the latest features, bug fixes, and security patches.
Examples:
Control Systems: LED panels can be connected to a LAN network and controlled using dedicated control systems or software platforms. These systems provide centralized control over multiple LED panels, allowing operators to manage content, brightness, power settings, and other parameters.
Content Management Systems (CMS): Content management systems hosted on a LAN server enable users to upload, organize, and schedule multimedia content for playback on LED panels. Operators can remotely access the CMS interface to update content playlists, create schedules, and monitor display performance.
Importance:
Remote Management: WAN connections extend the capabilities of LAN networks by enabling remote management and control of LED panels across geographically dispersed locations. This is particularly useful for large-scale deployments spanning multiple sites or venues.
Cloud-Based Control: WAN connections facilitate cloud-based control and monitoring of LED panels through web-based interfaces or applications. This allows operators to manage displays from anywhere with internet access, providing flexibility and scalability.
Content Distribution: WAN connections support the distribution of content from centralized servers or cloud-based repositories to LED panels located in different regions or countries. This enables synchronized content playback and centralized content updates across distributed display networks.
Examples:
Cloud-Based Solutions: LED panels equipped with WAN connectivity can be integrated with cloud-based control and content management platforms. These platforms offer features such as remote scheduling, monitoring, diagnostics, and reporting, empowering users to manage LED displays efficiently from anywhere in the world.
Digital Signage Networks: WAN connections enable the creation of digital signage networks comprising interconnected LED panels deployed across various locations such as retail stores, transportation hubs, stadiums, and corporate offices. Content can be distributed to these displays over the WAN, ensuring consistent branding and messaging across the network.
Pliminary Cautions When Using LEDs
When using LED display panels, it's essential to pay attention to various factors to ensure safety, optimal performance, and a positive viewing experience. Here are some key considerations:
Secure Installation: Ensure that LED display panels are securely installed and mounted according to manufacturer specifications. Loose screws, unstable mounting brackets, or inadequate support structures can pose safety hazards and risk the panels falling or becoming dislodged, especially in outdoor or high-traffic environments.
Electrical Safety: Adhere to electrical safety guidelines and regulations when installing and connecting LED display panels. Use proper wiring, connectors, and electrical enclosures to prevent electrical hazards such as short circuits, electric shocks, or fires. Regularly inspect cables, connectors, and power supplies for signs of damage or wear.
Driver Distraction: In outdoor environments, such as roadside billboards or digital signage near highways, consider potential driver distraction caused by LED display panels. Ensure that the content displayed on the panels is designed to minimize distraction and prioritize road safety. Avoid flashing or rapidly changing content that may divert drivers' attention from the road.
Brightness Control: Adjust the brightness levels of LED display panels appropriately based on ambient light conditions and viewing distance. Excessive brightness can cause discomfort or glare for viewers, especially in indoor settings or at night. Implement brightness control features to optimize visibility while minimizing energy consumption and eye strain.
Content Guidelines: Follow content guidelines and regulations regarding the type of content displayed on LED panels, especially in public spaces or areas frequented by children. Avoid displaying content that is offensive, inappropriate, or potentially harmful to viewers. Adhere to advertising standards and industry best practices for content creation and moderation.
Weather Protection: Provide adequate weather protection for outdoor LED display panels to shield them from environmental elements such as rain, snow, wind, and extreme temperatures. Use weatherproof enclosures, seals, and protective coatings to prevent water ingress, corrosion, and damage to internal components.
Heat Dissipation: Ensure proper heat dissipation and ventilation for LED display panels, especially in enclosed or indoor environments. Excessive heat buildup can degrade the performance and lifespan of LED panels, leading to color shifts, pixel failures, or reduced brightness. Install fans, heat sinks, or cooling systems as needed to maintain optimal operating temperatures.
Regular Maintenance: Implement a regular maintenance schedule for cleaning, inspection, and servicing of LED display panels. Check for dust accumulation, debris buildup, or signs of wear and tear that may affect performance or safety. Replace damaged components, tighten loose connections, and perform software updates as necessary to keep the panels operating smoothly.
By paying attention to these factors and implementing appropriate safety measures, LED display panel operators can ensure safe operation, compliance with regulations, and an enjoyable viewing experience for their audience.
FAQs (Frequently Asked Questions) about LED Display Panels:
Where are LED display panels used?
LED display panels are used in a wide range of applications, including digital signage, advertising billboards, stadium screens, retail displays, indoor and outdoor signage, stage backdrops, scoreboards, and information displays in public spaces.
How do LED display panels work?
LED display panels work by emitting light when an electrical current passes through semiconductor materials within the LEDs. Each LED functions as a pixel, producing colored light (red, green, or blue) that combines to create the desired colors and images. LED panels are controlled by driver circuits and display controllers that send video signals and control commands to the individual LEDs.
What is the difference between indoor and outdoor LED display panels?
Indoor LED display panels are designed for use in indoor environments with controlled lighting conditions. They typically have higher resolution, finer pixel pitch, and lower brightness levels compared to outdoor panels. Outdoor LED display panels are built to withstand harsh weather conditions and offer higher brightness levels for enhanced visibility in outdoor settings.
How do I choose the right LED display panel for my application?
When selecting an LED display panel, consider factors such as viewing distance, viewing angle, ambient light conditions, content requirements, budget, installation location, and environmental factors (indoor or outdoor). Choose a panel with appropriate resolution, pixel pitch, brightness, color quality, and size to meet your specific needs.
What maintenance is required for LED display panels?
LED display panels require regular maintenance to ensure optimal performance and longevity. Maintenance tasks may include cleaning the screen surface, inspecting for damage or defects, tightening connections, updating software/firmware, and monitoring for signs of wear or degradation. Follow manufacturer recommendations for maintenance intervals and procedures.
Are LED display panels energy-efficient?
Yes, LED display panels are energy-efficient compared to traditional display technologies such as LCD or plasma displays. LED panels consume less power while providing higher brightness levels, resulting in lower energy costs and reduced environmental impact. Additionally, LED panels can be dimmed or turned off when not in use to further conserve energy.
Can LED display panels be customized?
Yes, LED display panels can be customized to meet specific requirements in terms of size, shape, resolution, brightness, color configuration, and functionality. Customization options may include curved panels, transparent panels, interactive displays, modular designs, and specialized mounting solutions tailored to unique applications.
Are LED display panels suitable for outdoor use?
Yes, many LED display panels are specifically designed for outdoor use and are built to withstand harsh weather conditions such as rain, snow, heat, and humidity. Outdoor panels feature weatherproof enclosures, sealed components, and high-brightness LEDs for optimal visibility in bright sunlight.
What is the lifespan of LED display panels?
LED display panels typically have a lifespan of tens of thousands of hours of continuous operation, depending on factors such as usage intensity, environmental conditions, and quality of components. High-quality LED panels can last up to 100,000 hours or more before reaching their rated lifespan.
Can LED display panels be repaired if they malfunction?
Yes, LED display panels can often be repaired if they experience malfunctions or component failures. Common repairs may include replacing faulty LEDs, driver circuits, power supplies, or control boards. It's recommended to seek professional assistance from authorized service providers for repairs and maintenance.
Do LED display panels require calibration?
Yes, LED display panels may require calibration to ensure accurate color reproduction, uniform brightness, and consistent performance across the entire display surface. Calibration involves adjusting parameters such as color balance, gamma correction, brightness levels, and color temperature using specialized calibration equipment and software.
Are LED display panels waterproof?
Some LED display panels are waterproof and designed for outdoor use in wet or rainy conditions. These panels feature IP (Ingress Protection) ratings indicating their level of protection against dust and moisture ingress. Panels with higher IP ratings (e.g., IP65 or IP68) offer greater protection against water intrusion.
Can LED display panels be used for live video streaming?
Yes, LED display panels can be used for live video streaming and broadcasting in various applications such as sports events, concerts, conferences, and live performances. Video signals from cameras or video sources can be inputted into LED display systems for real-time display on the panels.
What are the different mounting options for LED display panels?
LED display panels can be mounted in various ways, including wall mounting, ceiling mounting, floor standing, hanging from trusses or rigging, and mounting on structures such as poles, columns, or frames. The choice of mounting option depends on factors such as installation location, space availability, and structural requirements.
Do LED display panels emit heat?
Yes, LED display panels do emit heat during operation, although significantly less than traditional display technologies such as incandescent bulbs or plasma displays. Heat dissipation mechanisms such as heat sinks, fans, and ventilation systems are used to manage and dissipate heat from the panels to maintain optimal operating temperatures.
Can LED display panels be controlled remotely?
Yes, LED display panels can be controlled remotely using various methods, including wired or wireless communication protocols such as Ethernet, Wi-Fi, Bluetooth, RS-232, or DMX. Remote control allows operators to adjust settings, schedule content playback, monitor performance, and troubleshoot issues from a centralized location.
Are LED display panels suitable for indoor events such as trade shows or exhibitions?
Yes, LED display panels are commonly used for indoor events such as trade shows, exhibitions, conferences, and corporate events. Their high brightness, vibrant colors, and dynamic content capabilities make them ideal for attracting attention, conveying information, and creating immersive experiences in indoor environments.
Can LED display panels be integrated with other AV equipment?
Yes, LED display panels can be integrated with other audiovisual (AV) equipment such as media players, video processors, sound systems, cameras, and lighting controllers. Integration allows for synchronized multimedia presentations, interactive experiences, and seamless operation of multiple AV devices within a unified system.
Do LED display panels require regular software updates?
Yes, LED display panels may require regular software updates to ensure compatibility with new content formats, improve performance, add new features, and address software bugs or security vulnerabilities. Manufacturers often release firmware updates that can be installed on LED panels via USB, network connections, or control systems.
Are LED display panels suitable for use in harsh environmental conditions?
Yes, LED display panels are designed to withstand a wide range of environmental conditions, including temperature extremes, humidity, dust, and vibration. Outdoor panels are specifically built with ruggedized enclosures, weatherproof seals, and protective coatings to ensure reliable operation in challenging outdoor environments.
Can LED display panels be used for interactive applications?
Yes, LED display panels can be used for interactive applications such as touchscreens, gesture recognition, and motion sensing. Interactive panels incorporate touch-sensitive overlays, sensors, or cameras that enable user interaction with displayed content, making them suitable for interactive kiosks, wayfinding systems, and digital signage.
How do LED display panels compare to traditional display technologies such as LCD or plasma?
LED display panels offer several advantages over traditional display technologies, including higher brightness, better color accuracy, wider viewing angles, lower power consumption, longer lifespan, and faster response times. LED panels are also thinner, lighter, and more flexible, allowing for creative design possibilities and seamless integration in various environments.
Can LED display panels be customized with specific sizes or shapes?
Yes, LED display panels can be customized to meet specific requirements in terms of size, shape, resolution, aspect ratio, and curvature. Customization options include curved panels, cylindrical displays, irregular shapes, and seamless video walls tailored to unique architectural or branding requirements.
How Does LED works?
Semiconductor Material: At the heart of an LED is a semiconductor material. Commonly used materials include gallium arsenide (GaAs), gallium phosphide (GaP), gallium arsenide phosphide (GaAsP), and indium gallium nitride (InGaN). The choice of material determines the colour of light emitted by the LED.
P-N Junction: LEDs are made of a P-N junction, where P represents the positively charged side (the anode) and N represents the negatively charged side (the cathode). When a voltage is applied to the LED, electrons from the N-type material move towards the P-type material, while positively charged "holes" from the P-type material move towards the N-type material.
Electron-Hole Recombination: As electrons and holes move towards each other across the junction, they recombine. When this recombination occurs, energy is released in the form of photons, which are packets of light. The energy of these photons determines the colour of light emitted by the LED.
Energy Band Gap: The energy band gap of the semiconductor material determines the energy and therefore the colour of light that the LED emits. LEDs with larger band gaps emit higher energy (shorter wavelength) light, such as blue or ultraviolet light, while those with smaller band gaps emit lower energy (longer wavelength) light, such as red or infrared light.
Encapsulation: The semiconductor chip is encapsulated in a solid plastic lens, which focuses the light and protects the semiconductor material from environmental factors such as moisture and mechanical damage. The lens also helps in controlling the light's directionality.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.jpg)
Advantages:
Advantages:
.png)
.png)
Importance:
